Wires, Conductors & Braids

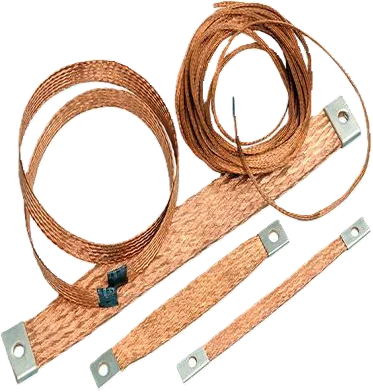

Flexible Copper Braid
Copper braids are woven structures made from strands of copper wire, providing a flexible and durable connection for various electrical and electronic applications. Flexible connectors are made from high conductivity copper, are used in electrical distribution, building services, and process plants for lightning protection and grounding purposes.
Supplied for export by Quantum Indus Exports. Specification confirmed per order.
Full specification and pricing on enquiry.
Specification & sizes
| Finish | Bare Copper or Tinned Copper | |
|---|---|---|
| Material | ETP-Cu | |
| Purity | 99.90% | |
| Dimension | Sq.mm | Length |
| 12x1 | 6 | 200-400 |
| 15x1.5 | 10 | 200-400 |
| 15x3 | 16 | 200-400 |
| 20x3 | 25 | 200-400 |
| 25x3 | 25 | 200-400 |
| 25x3.5 | 35 | 200-400 |
| 30x5 | 50 | 200-400 |
| 32x6 | 70 | 200-400 |
| 45x6 | 120 | 200-400 |
| 50x8 | 150 | 200-400 |
