Earth Rods & Electrodes

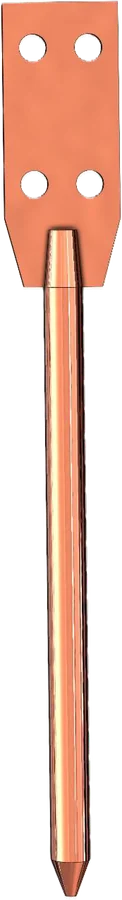

Copper Bonded Earth Rod (Welded Clamp)
Copper Bonded Earth Rods with Welded Clamp have a core of high tensile low carbon steel with each rod made by molecularly bonding 99.9% Pure Electrolytic Copper. They are easy to install and directly can be connected with conductor. Copper Coating ranges from 15 to 254 microns (μm).
- Sizes can be customised
Supplied for export by Quantum Indus Exports. Specification confirmed per order.
24 options below — use Enquire beside the size you need.
Specification & sizes
| Rod Dia (mm) | Total Length (mm) | Enquire |
|---|---|---|
| 14.2 | 1000 | |
| 14.2 | 2000 | |
| 14.2 | 3000 | |
| 16 | 1000 | |
| 16 | 2000 | |
| 16 | 3000 | |
| 17.2 | 1000 | |
| 17.2 | 2000 | |
| 17.2 | 3000 | |
| 20 | 1000 | |
| 20 | 2000 | |
| 20 | 3000 | |
| 25 | 1000 | |
| 25 | 2000 | |
| 25 | 3000 | |
| 32 | 1000 | |
| 32 | 2000 | |
| 32 | 3000 | |
| 38 | 1000 | |
| 38 | 2000 | |
| 38 | 3000 | |
| 40 | 1000 | |
| 40 | 2000 | |
| 40 | 3000 |
